spCorr

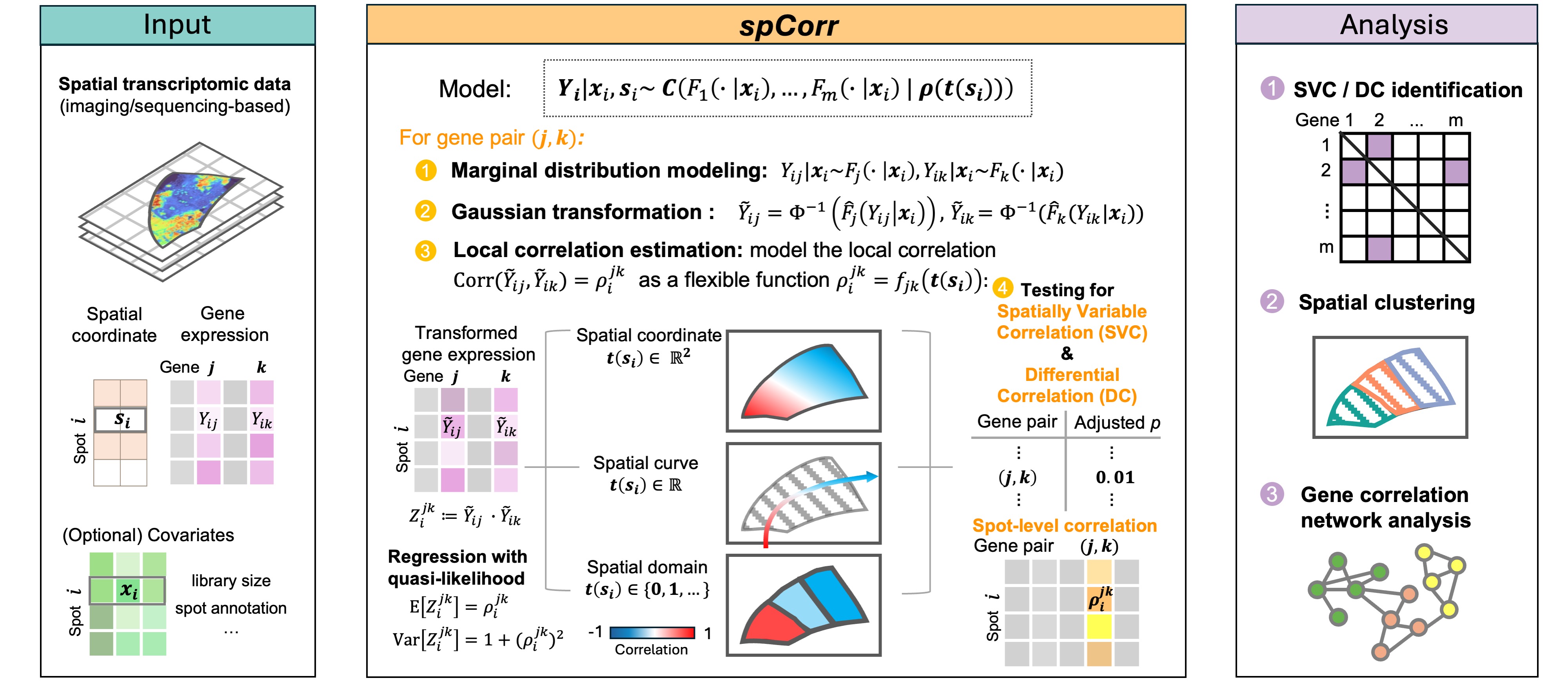

The R package spCorr is a flexible and scalable framework for detecting and characterizing spatially varying correlations (SVCs) in spatial transcriptomics data. It provides (1) spot-level correlation estimates between gene pairs and (2) identifies gene pairs whose correlations vary across space or between tissue domains. The spCorr supports flexible modeling of spot-level covariates, directly models count data, and enables efficient, permutation-free statistical inference. The following figure illustrates the workflow of spCorr:

Installation

To install the development version from GitHub, please run:

if (!require("devtools", quietly = TRUE))
    install.packages("devtools")
devtools::install_github("chexjiang/spCorr")

Quick Start

The following code is a quick example of running spCorr. The function spCorr() takes in count_mat, gene_list, gene_pair_list, and cov_mat (which should include spatial coordinates and any spot-level covariates).

spCorr <- function(count_mat,
                   gene_list,
                   gene_pair_list,
                   cov_mat,
                   formula1 = "1",
                   family1 = "nb",
                   formula2 = "s(x1, x2, bs='tp', k=50)",
                   family2 = quasiproductr(),
                   DT = TRUE,
                   global_test = "wald",
                   return_models = FALSE,
                   return_coefs = FALSE,
                   check_morani = FALSE,
                   preconstruct_smoother = TRUE,
                   ncores = 2,
                   control = list(),
                   epsilon = 1e-6,
                   seed = 123)

The parameters of spCorr() are:

  • count_mat: A matrix of counts where rows represent genes and columns represent observations.

  • gene_list: A list of gene names for which the conditional margins are to be fit.

  • gene_pair_list: A data frame or matrix containing pairs of gene names (or indices) to be analyzed.

  • cov_mat: A matrix of covariates, including spatial coordinates and any spot-level covariates (e.g.: spot annotations).

  • formula1: A formula specifying the model to be used for fitting the marginal distributions.

    • If no spot-level covariate needs to be adjusted, set formula1 = "1".
    • If there is a spot-level covariate need to be adjusted, specify formula1 = "covariate_name", where covariate_name is the column name from cov_mat representing the spot-level covariate.

  • family1: The distribution family for marginals (e.g., 'gaussian', 'poisson', 'nb').

  • formula2: A formula specifying the model for fitting the product distributions.

    • Examples: "s(x1, x2, bs='tp', k=50)", "s(x1, x2, bs='gp', k=50)".

  • family2: The distribution family for the product model. Default is quasiproductr().

  • DT: Logical; if TRUE, applies a discrete transformation suitable for count data. Default is TRUE.

  • global_test: Method for global testing in product models. Options: "lrt" (likelihood ratio test) or "wald" (Wald-style smooth term test). Default is "wald".

  • return_models: Logical; if TRUE, return full GAM model objects. Default is FALSE.

  • return_coefs Logical; if TRUE, return model coefficients and covariance matrices. Default is FALSE.

  • check_morani: Logical; if TRUE, filters gene pairs using Moran’s I on the product. Default is FALSE.

  • preconstruct_smoother: Logical; if TRUE, replaces bs='tp'/'gp' with tpcached/gpcached for faster computation. Default is TRUE.

  • ncores: Integer number of cores for parallel processing. Default is 2.

  • control: A list of control parameters passed to mgcv::gam() during product fitting.

  • epsilon: A small constant to avoid boundary issues in the uniform-to-Gaussian transformation. Default is 1e-6.

  • seed: A seed for reproducibility. Default is 123.

Tutorials

For all detailed tutorials, please check the website.
The tutorials demonstrate the main functionalities of spCorr, including spot-level correlation inference and the identification of spatially varying correlation (SVC) patterns.

Jiang, C., Yin, Y., Robson, P., Li, J. Y., Li, J. J., & Song, D. (2025). spCorr: flexible and scalable inference of spatially varying correlation in spatial transcriptomics. bioRxiv, 2025-09.
